Oil sludge treatment equipment

• Centrifugal Mud Cleaner:

The traditional desander, desilter or mud cleaner uses hydro cyclone as the core part of solid-liquid separation.

Their disadvantages are high energy consumption (the cyclone driven by a 55KW or 75 kW sand pump) and also unstable de-sanding effect (clogging, abrasion, pressure instability, etc. affect the separation), so the equipment efficiency is not high. Company designed a centrifugal desander to solve the above problems.

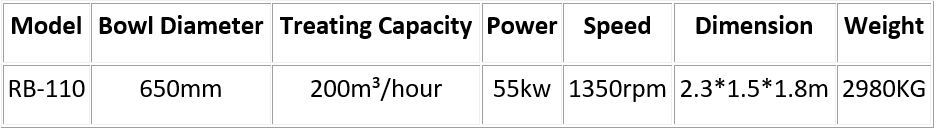

The centrifugal de-sander/Desilter working principle is a big diameter bowl low-speed centrifuge, but because of its specially designed drum structure, it is suitable for super high volume mud processing, and it can remove sand without reducing the mud weight when processing heavy mud. Both fixed speed and VFD speed are available.

Centrifugal desander/desilter/mud cleaner advantages:

1. Low energy consumption compared with traditional mud cleaner
   2. Better treatment result that can separate even less than 45 microns cuttings
   3. Flexible speed and capacity adjustment, better control the mud weight
   4. Less pipelines requirement and more effective volume for the mud tanks
   5. Less maintenance and consumable spare parts

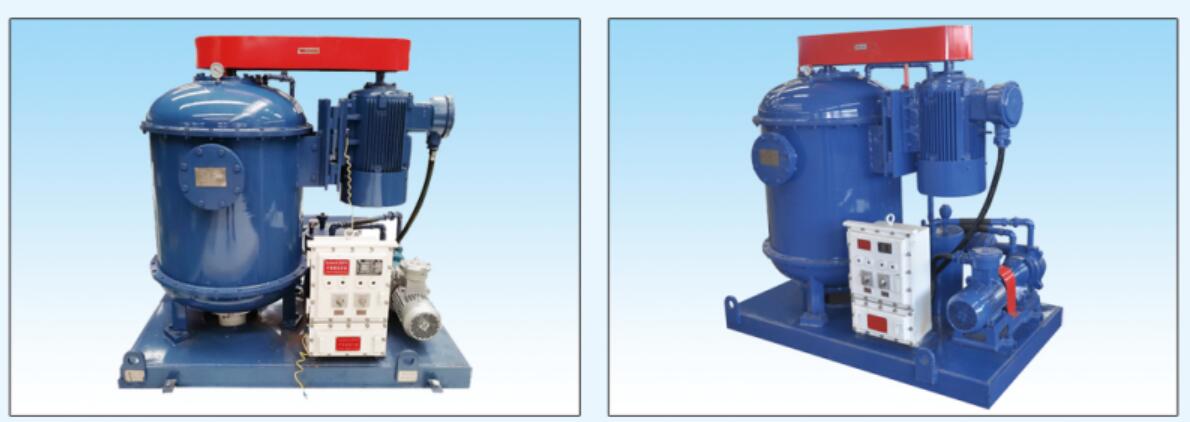

• Vacuum Degassers:

Degasser is special equipment used in solids control system to remove the gases such as hydrogen sulfide, carbon dioxide and natural gas from the drilling mud before they reach the shale shakers.

Mud gas separator or degasser is a vacuum unit, which is mainly composed of vacuum tank, vacuum pump, motor, vacuum pump system and electrical control box. Vertical and horizontal vacuum degasser for your option.

Vacuum degasser adopts three methods to separate gases from the drilling fluid:

1. The drilling fluid is thrown toward blade and tank wall in jetting form through the windows around the hollow shaft of rotor, the gases contained in the drilling fluid break and escape from drilling fluid.
2. Negative pressure is generated in the vacuum tank by vacuum pump, the bubbles in the drilling fluid expand to surfaces and break, and thus gases can be separated from mud much easier
3. The foam separator and two layers impeller continuous rotate which drive the gases appear and break.

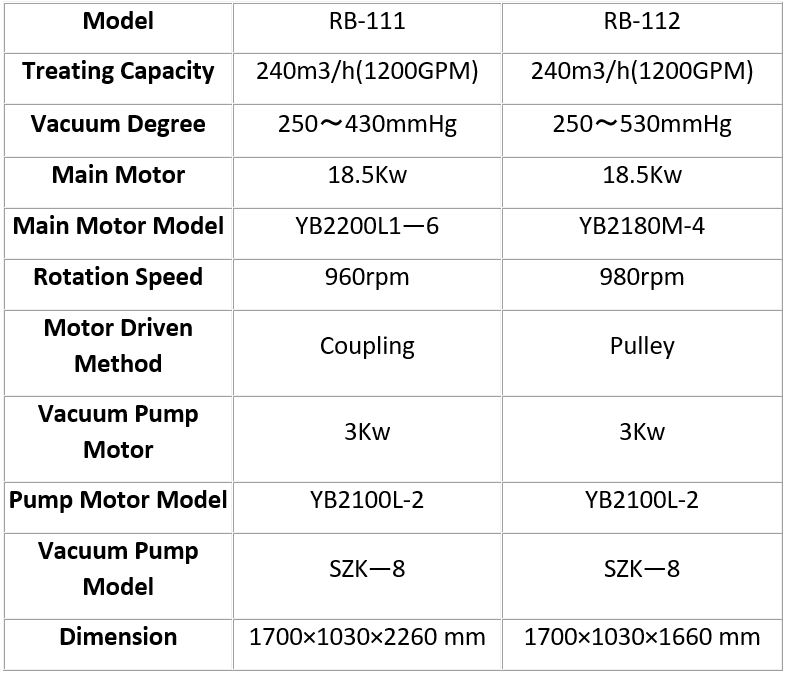

Vacuum Degasser Specs:

The choice between horizontally- or vertically-mounted units is typically based on the footprint requirements of the specific rig.

Mud/gas separators and degassers are just a few of the many solids control and drilling waste management offerings that company supplies to the oil and gas industry.

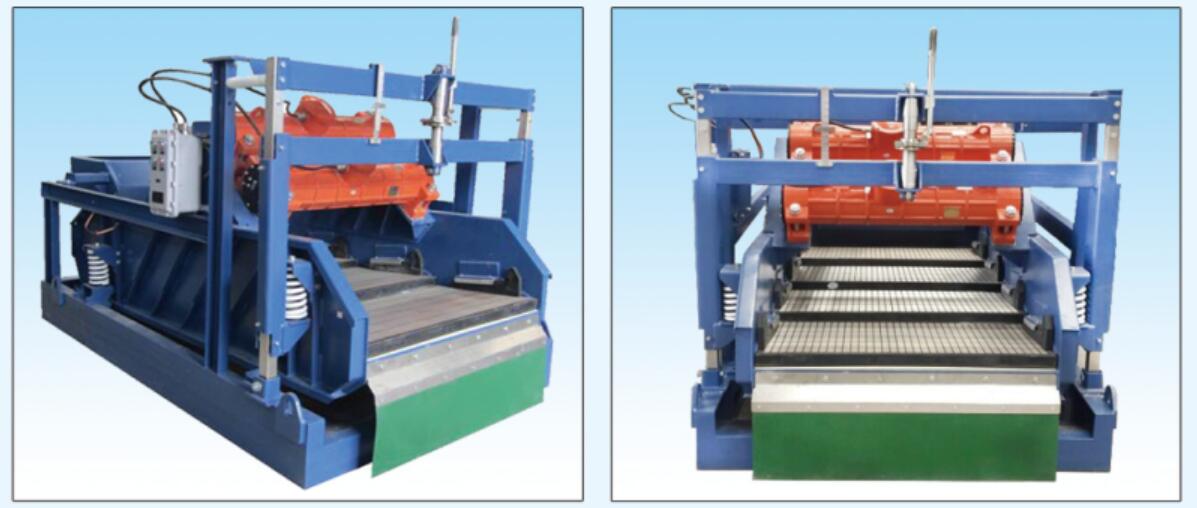

• Shale Shaker:

Shale shaker plays an important role as first mechanism for solids removal. If it fails in normal operation, there will be trouble for the subsequent solid control equipments (cyclone and centrifugem etc.). Therefore, the choosing of drilling fluid shaker is very important.

FZS series shale shaker is specially designed for separating solids from drilling fluid. Configured high G force USA martin motors, bigger screen area and high-volume treating capacity it is applicable for various mud purification systems and has extraordinary satisfactory field working performance. As per customer requirement, we can design and manufacture double and triple shakers.

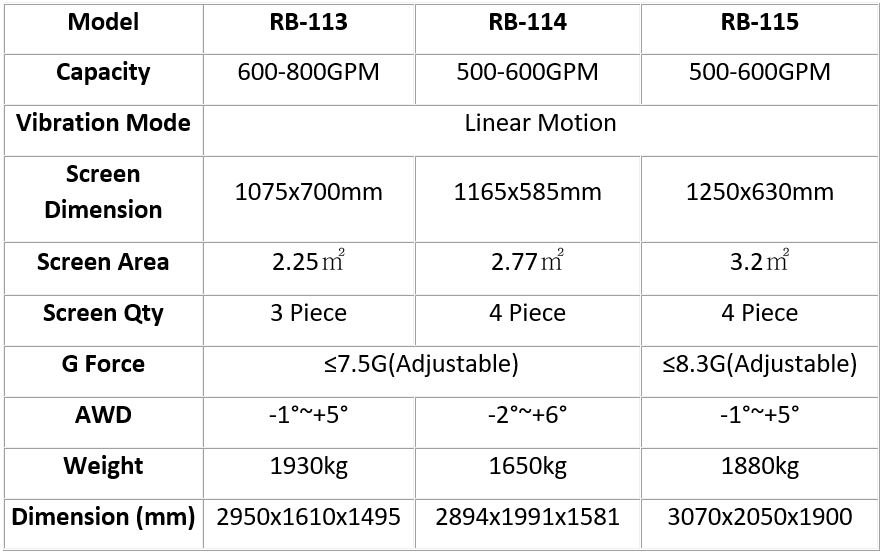

Shale Shakers Spec:

Shale Shaker Features and Benefits:

1. High G force reach 8.5G, linear motion so that the drill cuttings can move on the screen surface regularly and smoothly.
2. Bigger screen area 3.2㎡，higher treating capacity 1280GPM.
3. Shaker deck angle is AWD to adapt to different drilling rates and mud property
4. Pre-tightened bilateral fixation mechanism shaker screen to facilitate change of screen. Even tension of the screen prolongs service life.
5. Sand blasting on all metal structural parts reach to class Sa2.5. Strong adhesion of paint reduces erosion of mud on the equipment
6. The electrical control system adopts the Schneider contactor with reliable quality. Time accumulator is equipped to guarantee the lubricating oil is filled into the motor in time and the whole electrical control system has thermal overload, over current and low-voltage protection, which can effectively protect safe operation of the vibration motor.

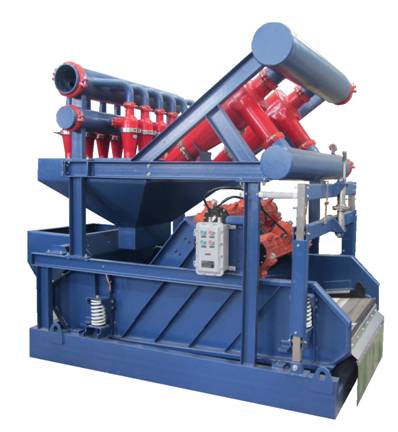

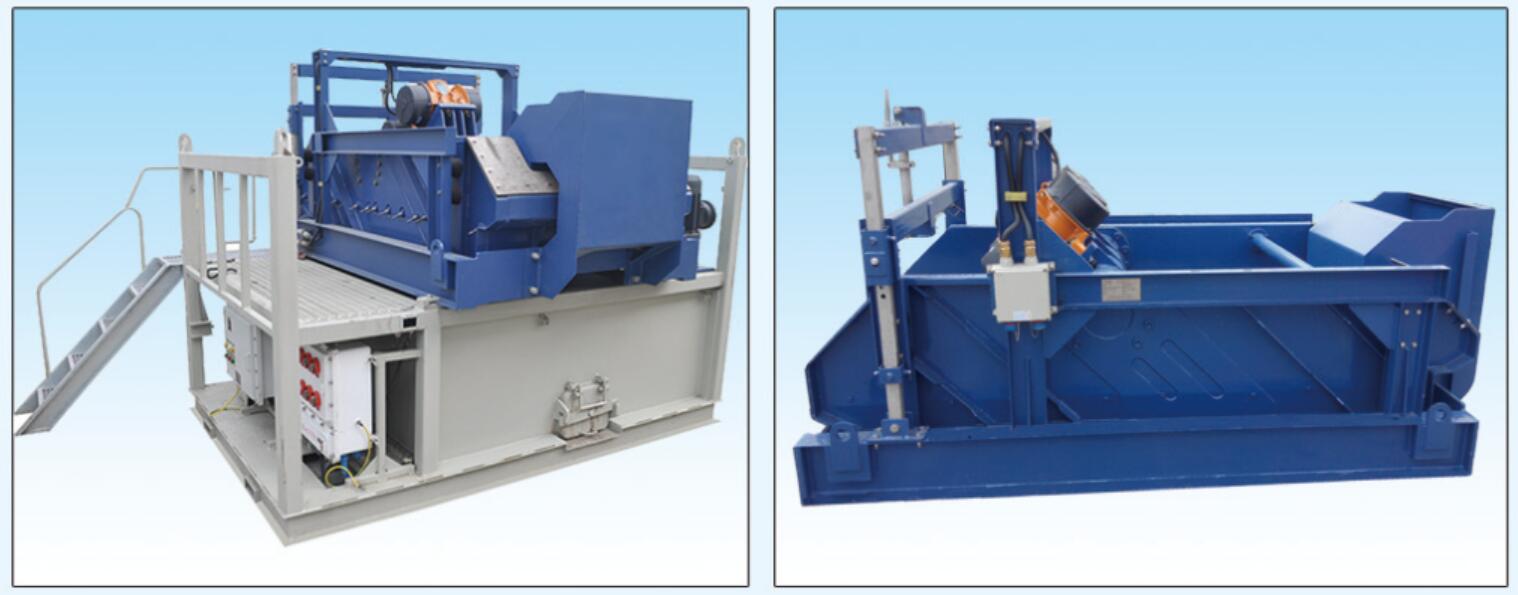

• Mud Cleaner:

Mud cleaner is a combined unit of shale shaker, desander, desilter hydro cyclones and manifold. In drilling mud solids control system ,it is installed behind shale shaker as second and third grade solids control equipment, minimum separation point 15um. The fluids recovered can be pumped back to well use directly or for next phase separation by decanter centrifuge for ultra-fine solids removal.

Mini mud cleaner integrate smaller footprint drying shaker and desander, desilter hydro cyclones, offers better performance than traditional desander and desilter. It is an economical solution for barite recovery and separation of LGS. Most popular for small power drilling rig in oil & gas, CBM, HDD industry.

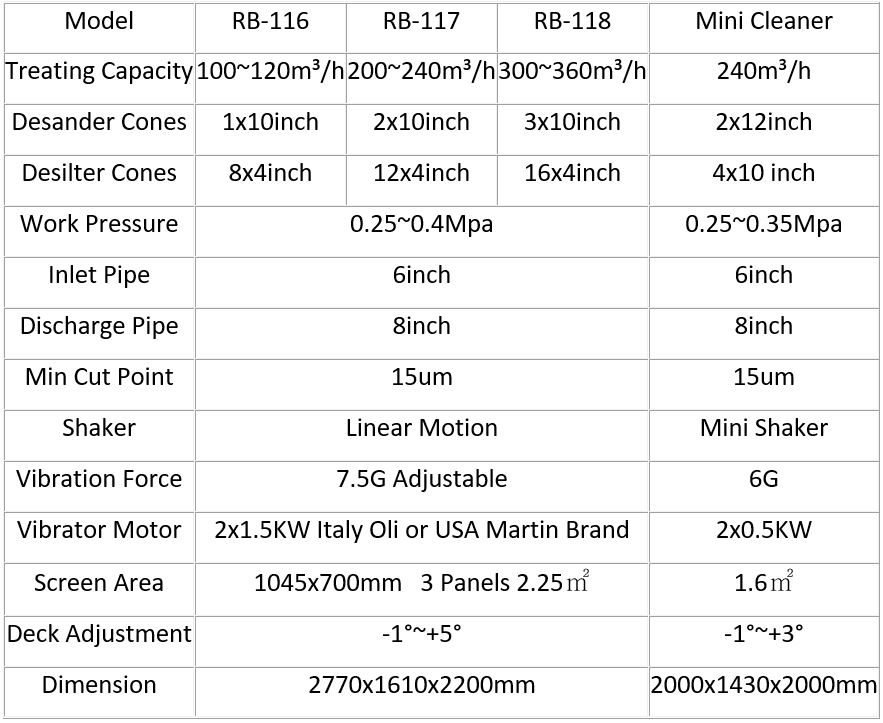

Mud Cleaner Specs:

Mud Cleaner Features and Benefits:

1.Hign efficiency and compact in design. Mud cleaner is a compact unit of desander, desilter and shale shaker, best choice for weighted mud barite recovery and separation of LGS

2.Desander hydro cyclones made of three parts, when one part wears out, it can be replaced separately. Desilter apex diameter adjustable according to the sand volume in drilling mud

3.Desander and desilter cones made of PU material, high corrosion resistance.

4.Linear motion underflow shaker, available of more than 175mesh shaker screens, no screen block and mud run. Deck angel Adjustable while drilling -1°~+5°

5.High treating capacity reach 1500 GPM, pretension type double sides fixed screen fast changing

6.Clamp type manifold for pipe and hydro cyclones, reliable connection and easy maintenance

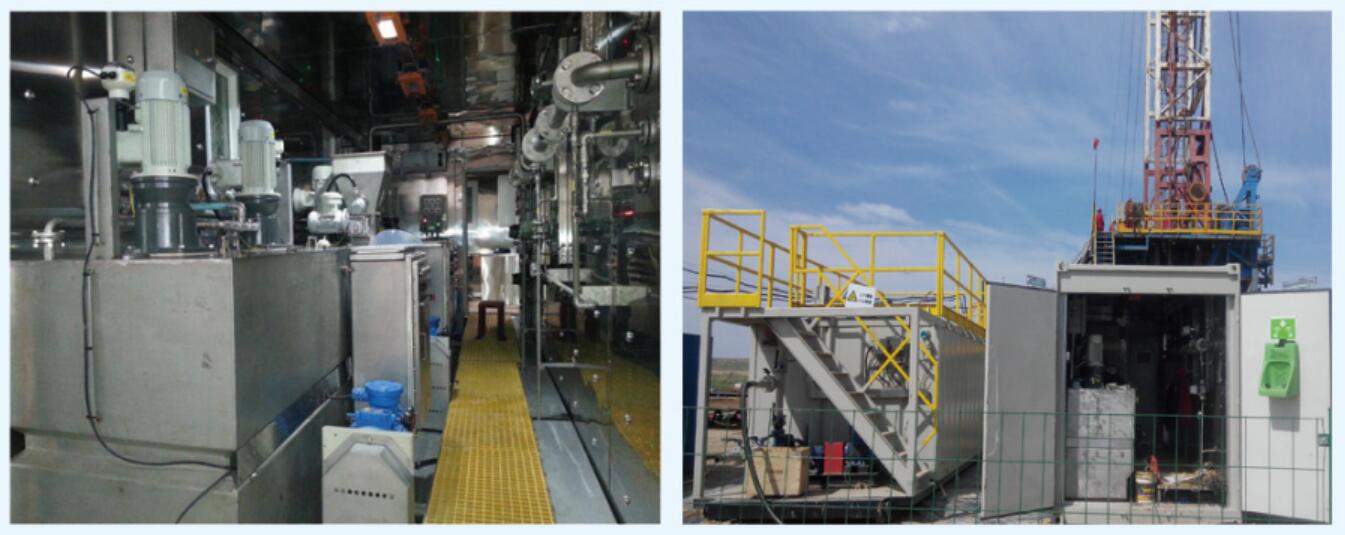

• Dewatering Unit:

Company explosion proof 20ft containerized automatic dosing unit is a high stand chemical dosing unit, solids and liquids separation and chemical dosing process is continuous, closed and stable.  PLC system automatic warning for lack of polymers and avoid dry running. Through coagulants and flocculants technology to make the ultra-fine particles (≤2microns) aggregate into large mass, then separate by dewatering centrifuge.

Liquid phase zero discharge: liquid from first phase centrifuge can be used as active mud, second phase liquid from filtration unit reach discharge standard, three phase drinkable water.

Solids Phase: Through Remediation technology, satisfy State earth quality standard, can be used for landfill, road spread, and re-agriculture.

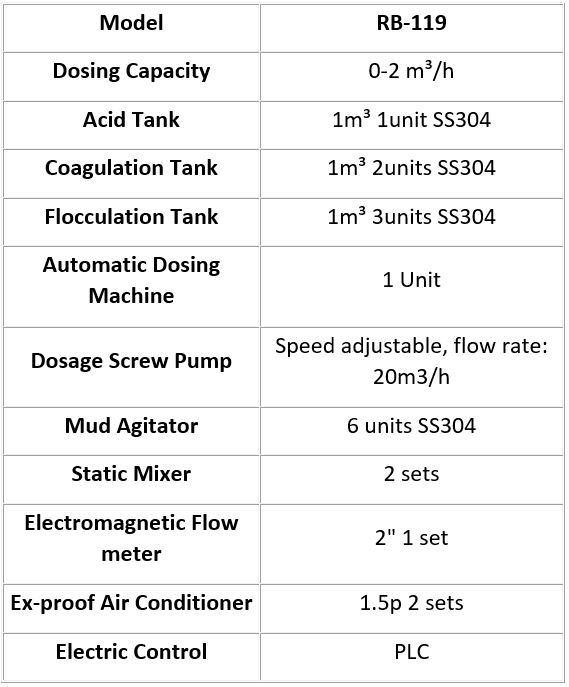

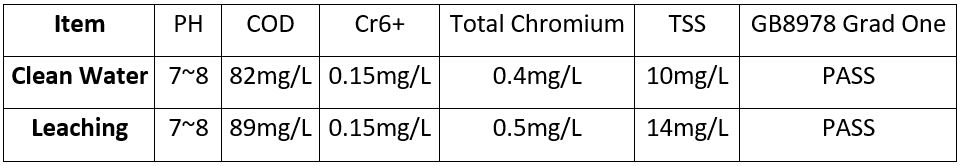

Data Taken from Wellsite Test Center:

Features & Benefits of Dewatering Unit:

1. Adopt international famous chemical assistant centrifugal separation technology, solids phase separation and chemical pill mixing is continuous, closed and stable operation, less personnel and chemical cost.
   2. Chemical pill mix, flow capacity adjustable, water quality test work integrate in containerized mud lab, easier operation, better working condition for high standard chemical mixing.

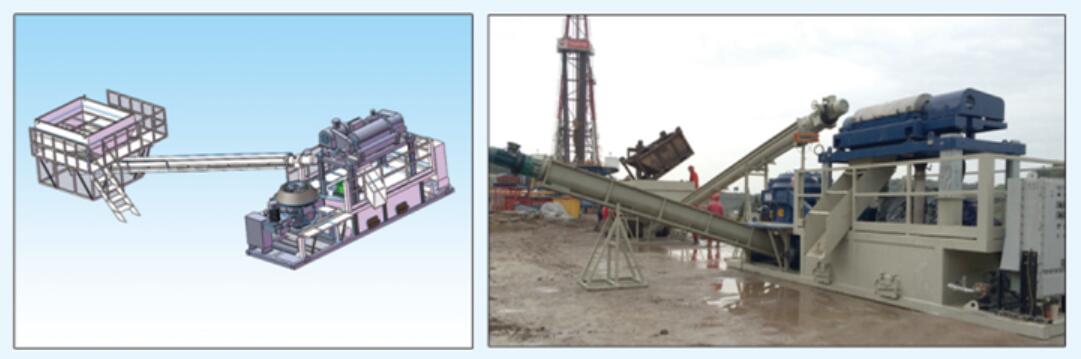

• Waste Management System:

Company provides total package solutions for both OBM/SBM and WBM drilling waste management. It is also called dry location drilling system due to it is closed loop and zero discharge system, most important it saves the mud pit and environmental friendly during drilling operations. As per customers different discharge standard and investment, we have different proposal for option.

System design concept based on:

REDUCE: The surface of the location, the quantity of chemicals

RECOVER: The drilling fluids from the solids control equipments

RECYCLE: The liquids after primary and secondary treatments

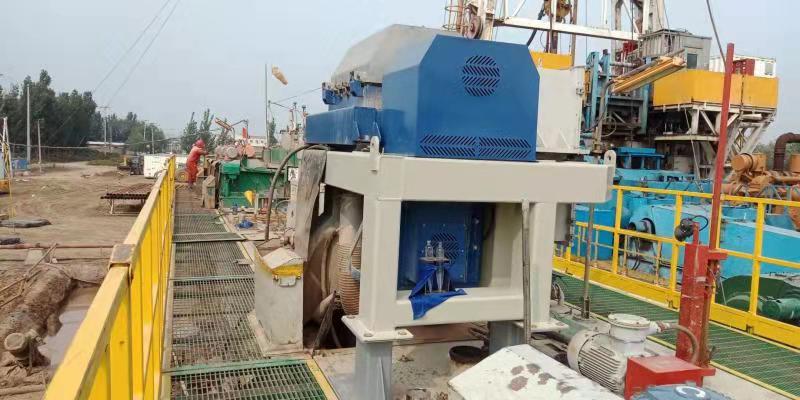

•  • RB-120 Centrifuge:

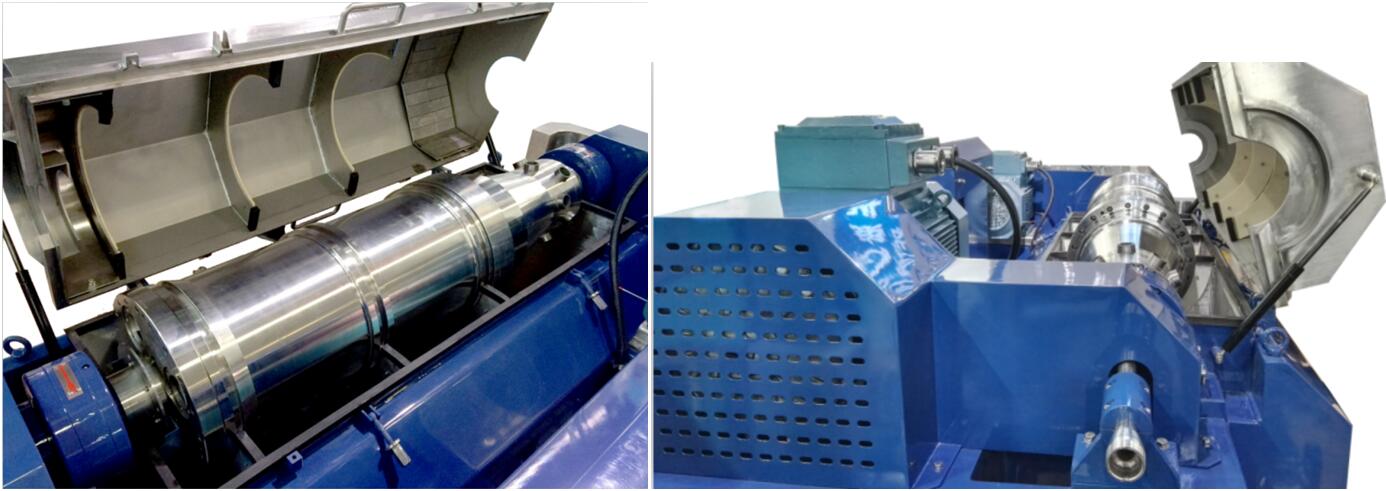

RB-120 high speed, high pulling torque VFD centrifuge is a newly and specially designed centrifuge for dewatering use. Main function is the retreatment for the water-based mud and oil-based mud drilling waste. It can replace traditional solids control centrifuge, with better performance, especially when treating with 70% high solids content, 1.8g/cm³ high mud weight drill waste.

RB-120 decanter centrifuge utilizes 316L stainless steel material bowl, screw conveyor welded with tungsten carbide tile, matched with advanced PLC panel special designed for drilling waste management treatment. It is the best partner for SGL-02 cuttings dryer.

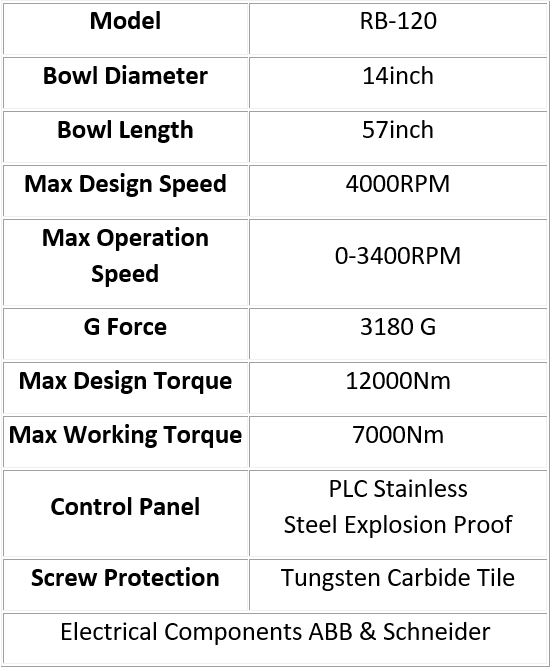

Drilling Waste Management Centrifuge Specs:

Waste Management Centrifuge Features:

1. Optimized fluids inlet system minimized the breakage for the material during feeding, result in more effective treatment
   2. The inside structure adjustment satisfy the high percentage solids contain in drilling waste retreatment and big volume solids discharge requirement. Our high pulling torque and power features design can meet different worksite needs. For oil-based mud treatment, oil on the solids 10%-13%
   3. According to different geology requirement for drilling waste treatment, the electric control system adopt VFD design for main motor, back motor and pump motor, ABB frequency convertor, explosion proof control panel. Compact and stable in operation, fast and convenient in maintenance .
   4. Anti-plug system, when plug happens, the centrifuge will enter into automatic control, eliminate the plug, make the centrifuge work normal again, completely eliminate centrifuge bowl plug problem.

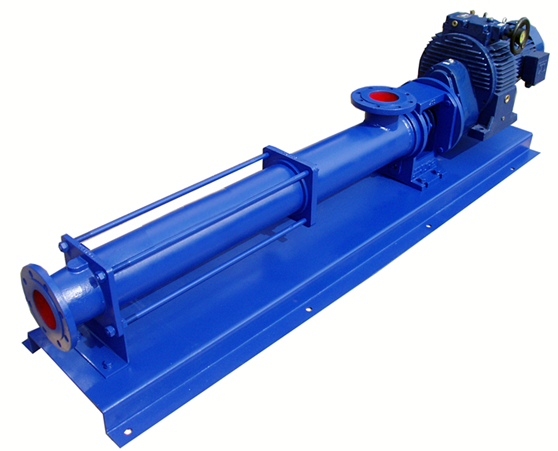

   Single screw pump is a kind of positive displacement pump, which can deliver media with different density and viscosity, the best feeding pump for decanter centrifuge. Rigid rotor rotates in the elastic stator (usually made of rubber) to deliver medium. In addition, rotor is a rod component with single-end external thread, while stator is a sleeve component with double-end internal thread, which forms a continuous sealing line in a threaded shape. At the time of working, the seal cavity, which is formed by threaded sealline, moves forward continuously to deliver media in the cavity.

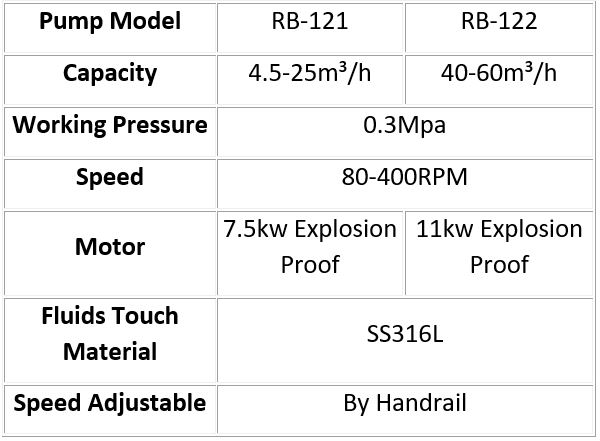

LGB Positive Displacement Pump Spec:

Hi G Dryer Shaker:

HG320 High-Capacity cuttings dryer shaker, single deck, utilizing vibration system to produce an adjustable High G force up to 8.5, tensioning device screens to be 80 mesh or finer installed on a catch tank to collect recovery drilling fluids from cuttings, pumps and hoses to transfer the drilling fluids back to rig drilling fluids system. Bigger area screens proven to be effective in solids/liquid separation. VFD control panel make your two version electric(50HZ/60HZ) interchangeable freely.

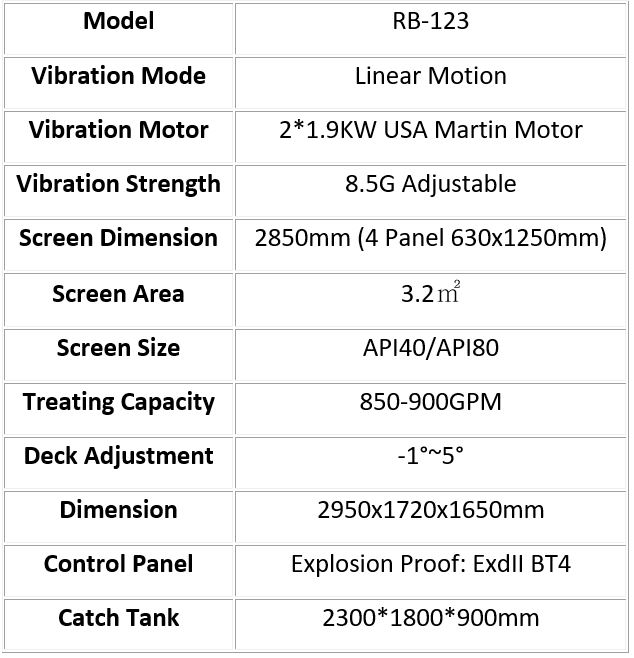

High G Dryer Shaker Specifications:

High G Dryers Features and Benefits:
1. Linear motion, the drill cuttings can move on the screen surface regularly and smoothly.
2. Super G force reaches to 8.5G, better cuttings dryer performance
3. 4 Panel bigger shaker screens, higher treating capacity
4. AWD-1°~+5° adapt to different drilling conditions and mud property
5. VFD control panel, two version electric (50HZ/60HZ) interchangeable freely.
